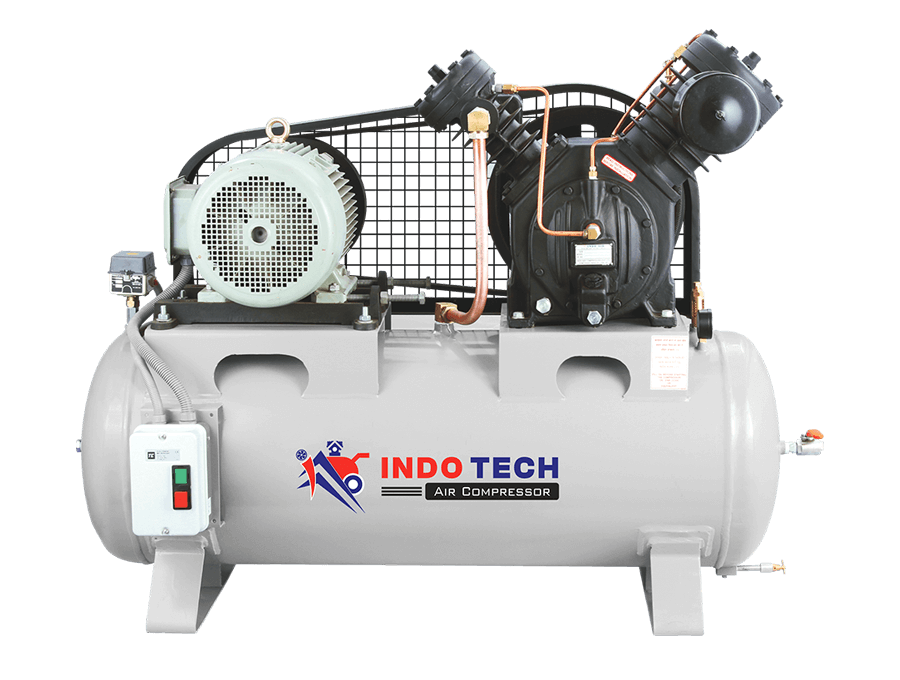

Reciprocating Two Stage Medium Pressure Air Compressor

Medium Pressure (3 To 30 Hp)

Applications

Applications

MODEL	MOTOR		NO. OF CYL.	RPM	RECEIVER		MAX. PRESSURE		PISTON DISPL
MODEL	HP	KW	NO. OF CYL.	RPM	CFT.	LTRS.	PSIG	KG/CM²	CFM	M³/M	LTR/MIN
ITAC 254	3.0	2.20	2	960	5.30	150	175	12.30	10.80	0.305	305
ITAC 5330	3.0	2.20	2	1000	5.30	150	175	12.30	11.25	0.318	318
ITAC 262	5.0	3.70	2	865	7.95	225	175	12.30	17.32	0.490	490
ITAC 262	7.5	5.50	2	1000	7.95	225	175	12.30	20.00	0.570	570
ITAC 5465	5.0	3.70	2	950	7.95	225	175	12.30	18.98	0.537	537
ITAC 5465	7.5	5.50	2	1100	7.95	225	175	12.30	22.00	0.622	622
ITAC 273	7.5	5.50	2	660	8.83	250	175	12.30	26.23	0.740	740
ITAC 273	10.0	7.50	2	660	8.83	250	250	17.50	26.23	0.740	740
ITAC 5535	7.5	5.50	2	750	8.83	250	175	12.30	29.81	0.843	843
ITAC 5535	10.0	7.50	2	950	8.83	250	175	12.30	37.80	1.070	1070
ITAC 91T2	10.0	7.50	2	725	10.60	300	175	12.30	40.00	1.130	1130
ITAC 91T2	12.5	9.30	2	900	10.60	300	175	12.30	49.50	1.400	1400
ITAC 91T2	12.5	9.30	2	800	10.60	300	250	17.50	44.00	1.245	1245
ITAC 91T2	15.0	11.00	2	1000	10.60	300	175/td>	12.30	55.00	1.560	1560
ITAC 35T	15.0	11.00	3	700	17.66	500	175	12.30	63.50	1.800	1800
ITAC 35T	20.0	15.00	3	900	17.66	500	175	12.30	81.80	2.310	2310
ITAC 45T2	25.0	18.50	3	800	17.66	500	250	17.50	87.94	2.490	2490
ITAC 45T2	25.0	18.50	3	900	17.66	500	175	12.30	99.00	2.800	2800
ITAC 45T2	30.0	22.00	3	1000	17.66	500	175	12.30	110.00	3.100	3100

Analyze the frequency and methods of compressor utilization.
Develop a brief inventory of in-plant equipment using compressed air, specifying their anticipated airflow needs (in CFM) and pressure requirements (in PSI).
Account for the operational duty cycle of your compressors, keeping in mind that continuous operation is generally not intended.
Determine the appropriate size and capacity of the air tank; increased equipment usage typically necessitates a larger tank for optimal compressor efficiency.
Incorporate a 10% buffer in compressor capacity to offset potential air misuse, system leaks, and pressure losses.
Select between a continuous operation (load/unload) or an intermittent operation (start-stop) compressor model.
Identify the necessary attachments for each compressor setup.
Evaluate additional factors such as upkeep, anticipated lifespan, troubleshooting protocols (including manufacturer support and local branches), and repair costs.
